Single Bite Ferrule Fittings

Single Bite Ferrule Fittings

Single bite ferrule fittings, also known as single ferrule fittings or single compression fittings, are a type of compression fitting used to connect tubing or hoses in various fluid systems, including hydraulic and pneumatic applications.

Here are the key features and aspects of single bite ferrule fittings:

Design and Construction:

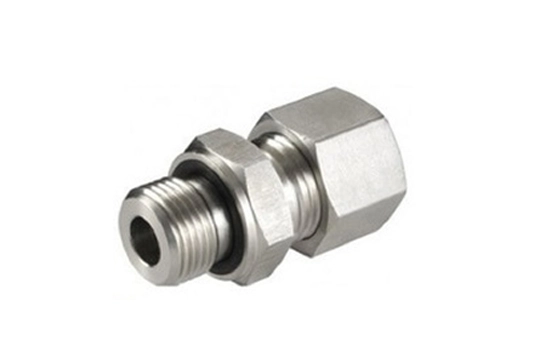

Single Bite Ferrule Fittings
  • A single bite ferrule fitting consists of a single compression sleeve (ferrule) that compresses onto the tubing or hose when assembled.
  • The ferrule typically has a conical shape that compresses uniformly around the tubing when the fitting is tightened, creating a strong and reliable seal.
  • Sealing Mechanism:

  • The sealing mechanism of a single bite ferrule fitting involves the ferrule being compressed onto the tubing as the fitting is tightened.
  • This compression creates a secure seal between the tubing and the fitting body, preventing leakage of fluids under pressure.
  • Assembly Process:

  • To assemble a single bite ferrule fitting, the tubing is inserted into the fitting body until it reaches the bottom.
  • The ferrule is then placed over the tubing end inside the fitting.
  • As the nut of the fitting is tightened onto the body, it forces the ferrule to compress uniformly around the tubing, forming a tight seal.
  • Materials and Applications:

  • Single bite ferrule fittings are typically made from materials such as stainless steel, brass, or other metals that offer good strength and corrosion resistance.
  • They are used in a variety of applications where reliable and leak-free connections are essential, including hydraulic systems, pneumatic systems, instrumentation, and fluid transfer systems in industrial settings.
  • Advantages:

  • Secure and leak-proof: The compression of the ferrule onto the tubing ensures a tight seal, minimizing the risk of leakage.
  • High-pressure capability: Single bite ferrule fittings are designed to withstand high pressures commonly found in hydraulic and pneumatic systems.
  • Easy assembly: The assembly process is relatively simple and does not require soldering, welding, or special tools beyond a wrench or spanner for tightening.
  • Considerations:

  • Proper sizing and selection of single bite ferrule fittings are important to ensure compatibility with the tubing material, size, and operating conditions.
  • Regular inspection and maintenance are necessary to detect any wear or damage to the ferrule or tubing that could compromise the integrity of the seal.
  • Single bite ferrule fittings offer a robust and reliable solution for connecting tubing in fluid systems, providing ease of assembly and dependable performance in a wide range of industrial applications.
